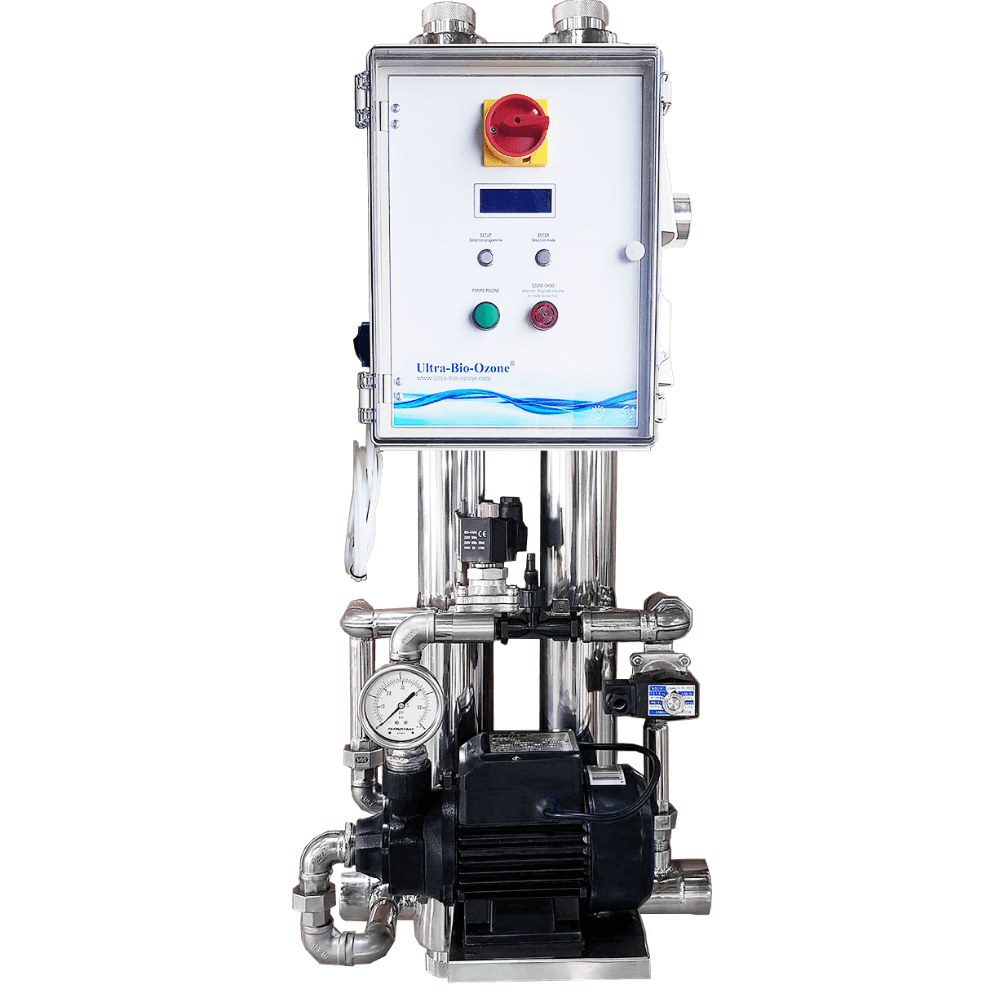

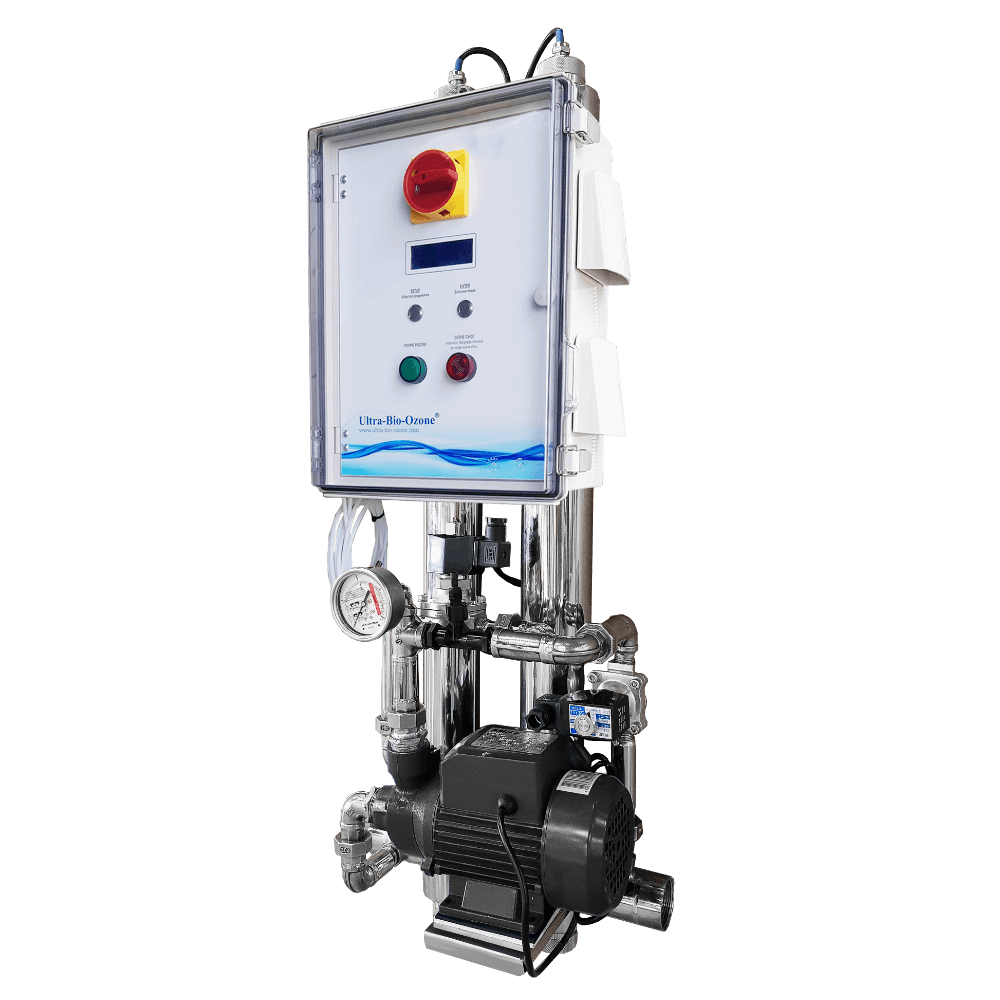

UBO 160M / 30 m3

Swimming pool water treatment wall mounting

Model : UBO 160M

For pool / spa up to 30m3

Swimming pool water treatment wall mounting

In accordance with European regulations on biocides,
UBO systems sold in Europe do not produce ozone gas.

Online
Wall mounted
Chemical-free water treatment at a very economical price, while retaining the benefits of Ultra-Bio-Ozone® systems

Wall mounted

Chemical-free water treatment at a very economical price, while retaining the benefits of Ultra-Bio-Ozone® systems

  • For pool / spa up to 30m3
  • For filtration pump flow rate 7-10 m 3 / h
  • Weight 23 kg
  • 304 L stainless steel
  • 1 lampe UV-C 105W
  • 1 Ozone lamp 80W
  • Contact chamber – no
  • Flocculent / coagulant product injection pump (or other) – yes
  • Production d’ozone – 1-2 g/h
  • Inlet / outlet diameter 1.5 inch (DN40)
  • Height 104 cm x Length 50 cm x Width 34 cm

The principle of the patent includes 2 modes of operation

  • Mode 1 normal : When bathers are present, the device eliminates the ozone before the water leaves the system to prohibit any rejection in the basin.
  • Mode 2 shock ozone : When the pool is not used, for example at night, it is the activation of shock ozonization that completely replaces all the residual chemicals.
