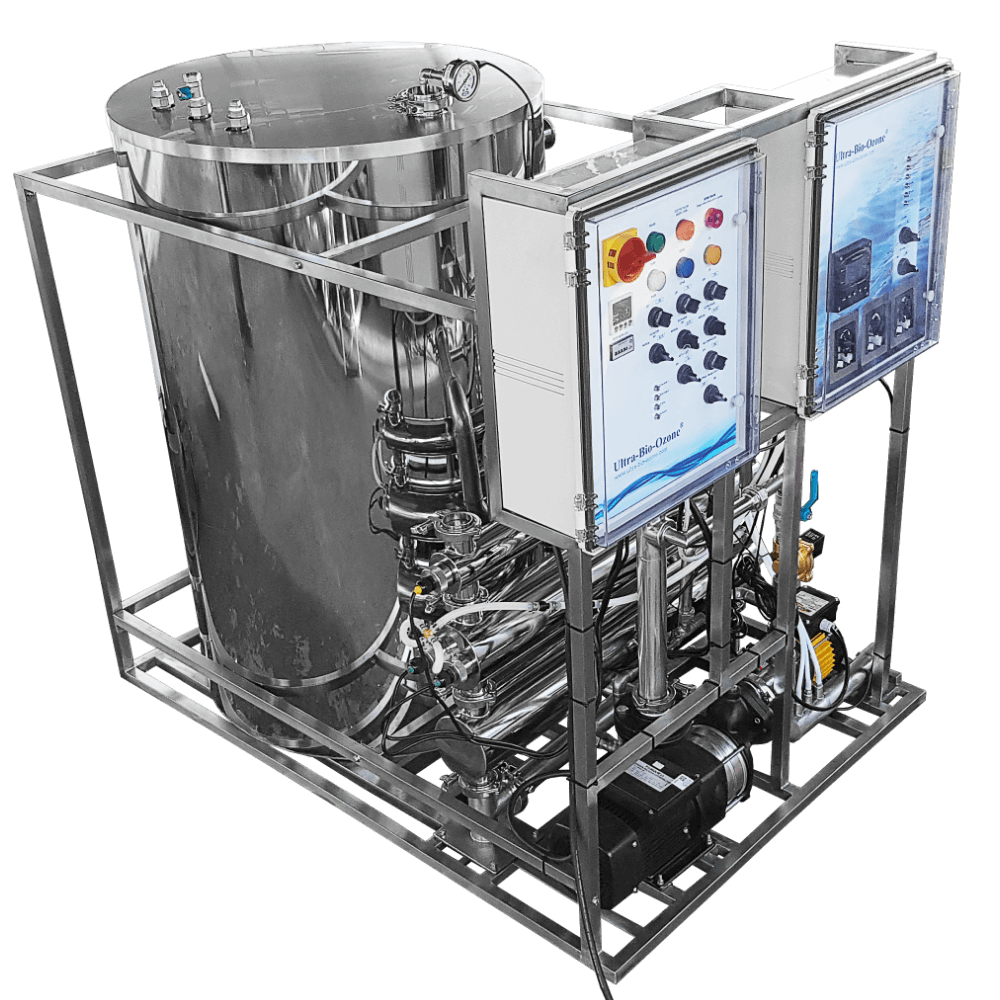

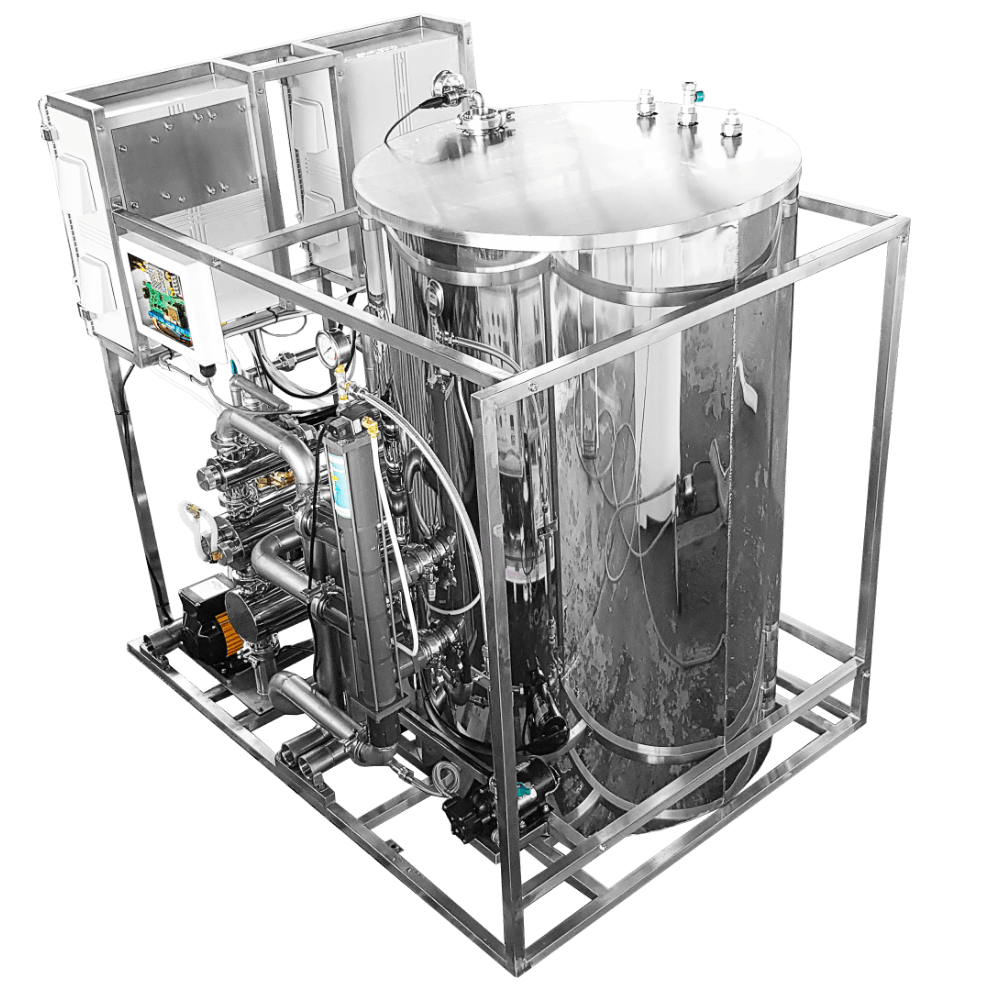

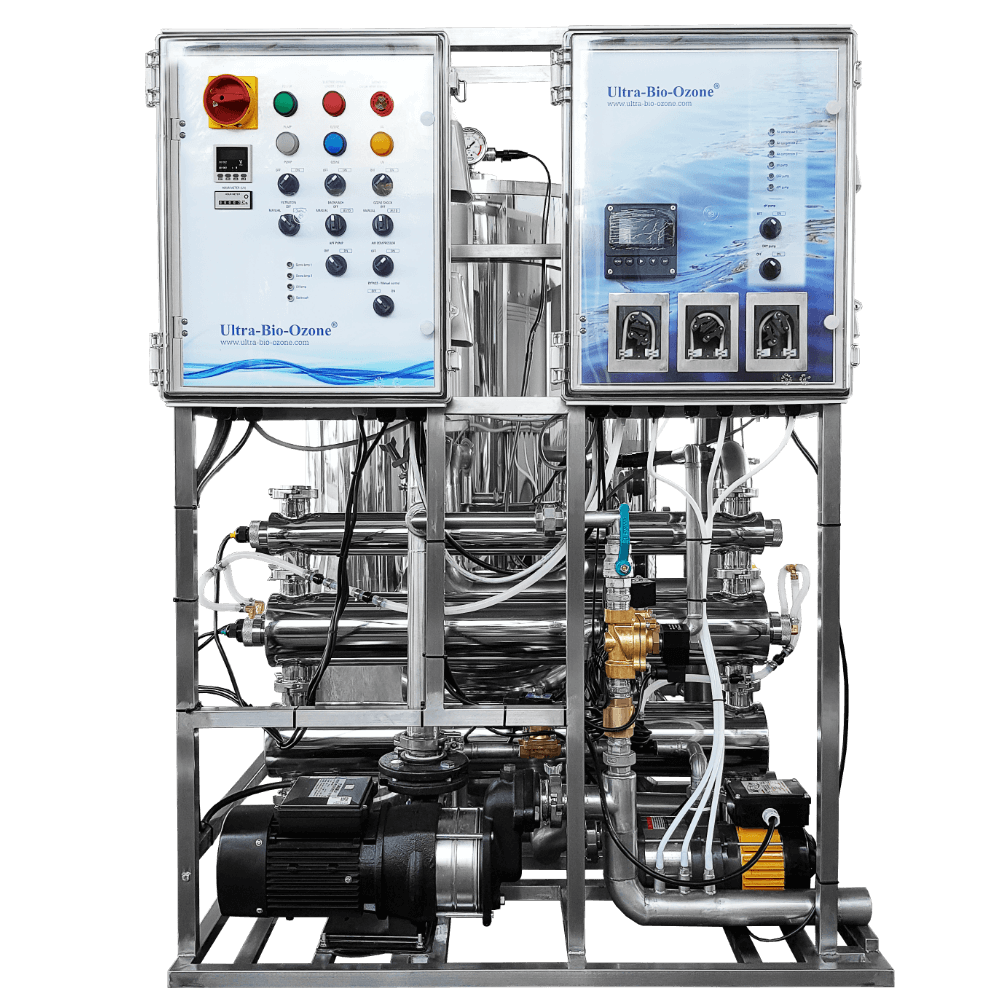

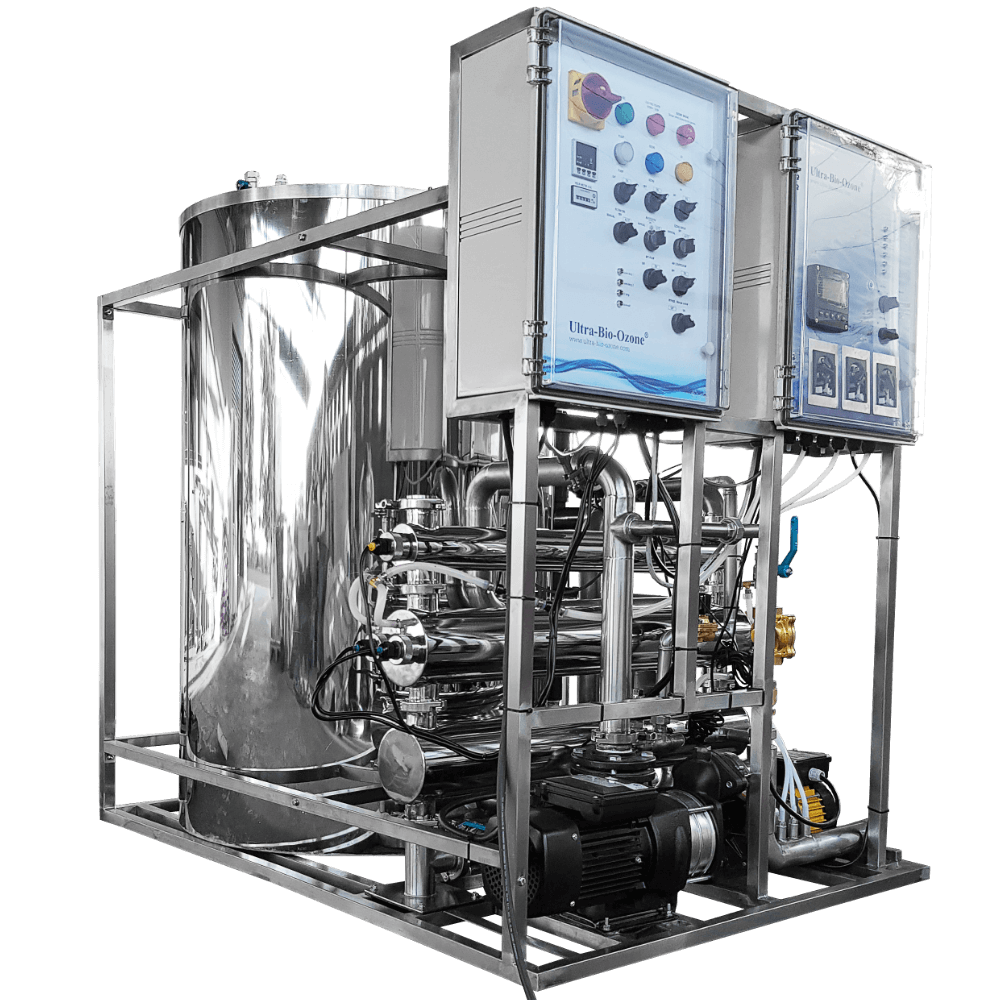

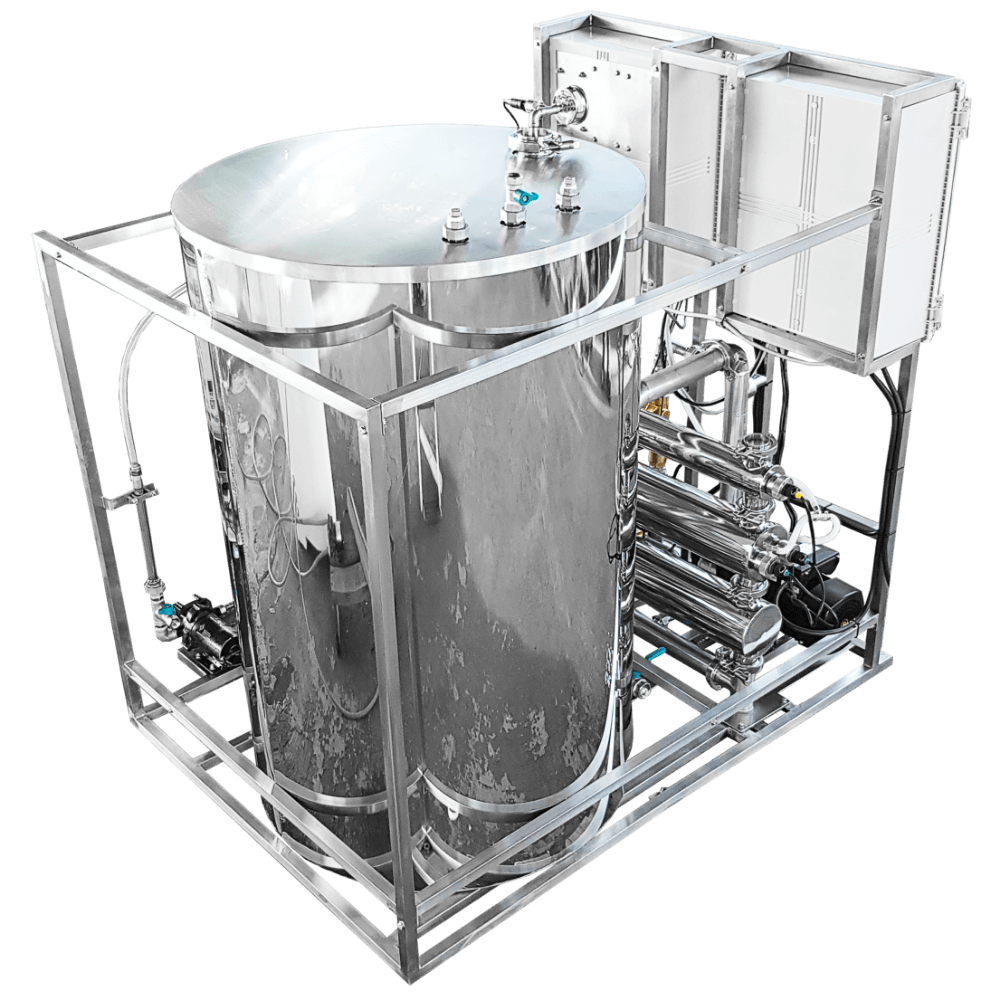

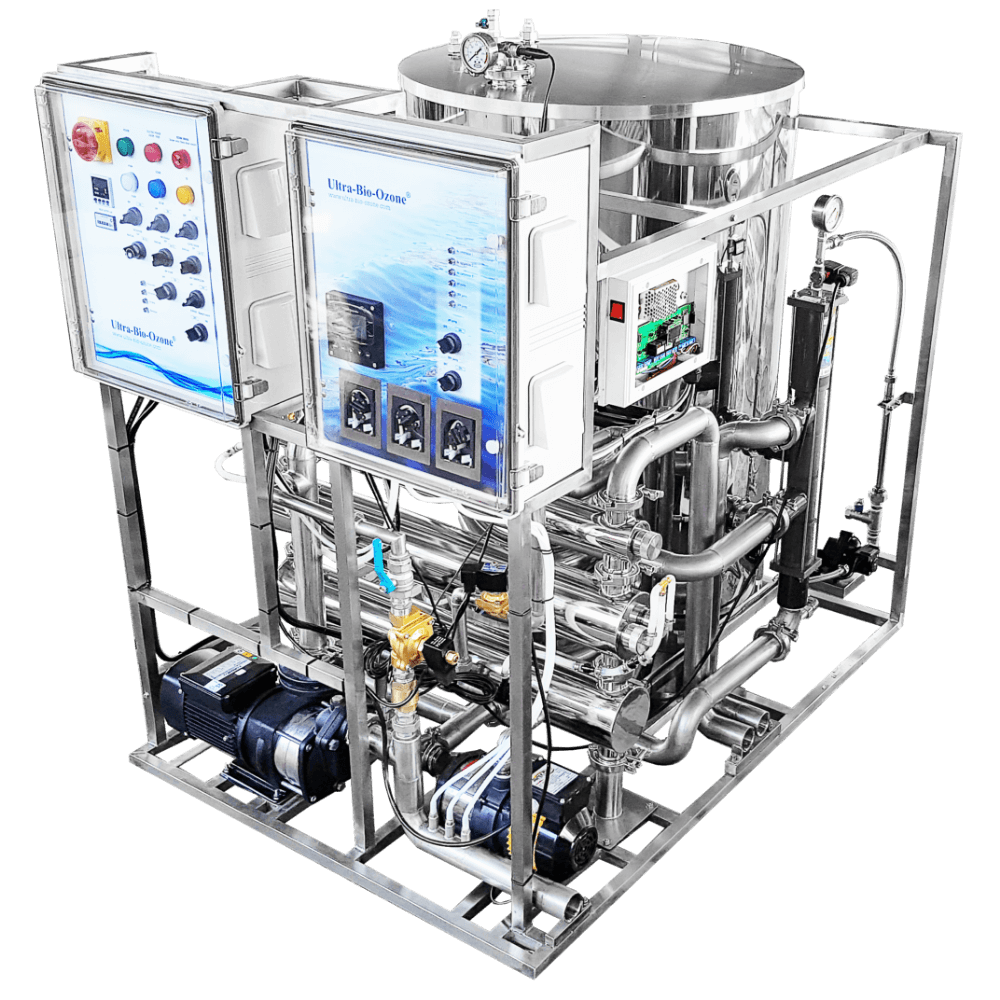

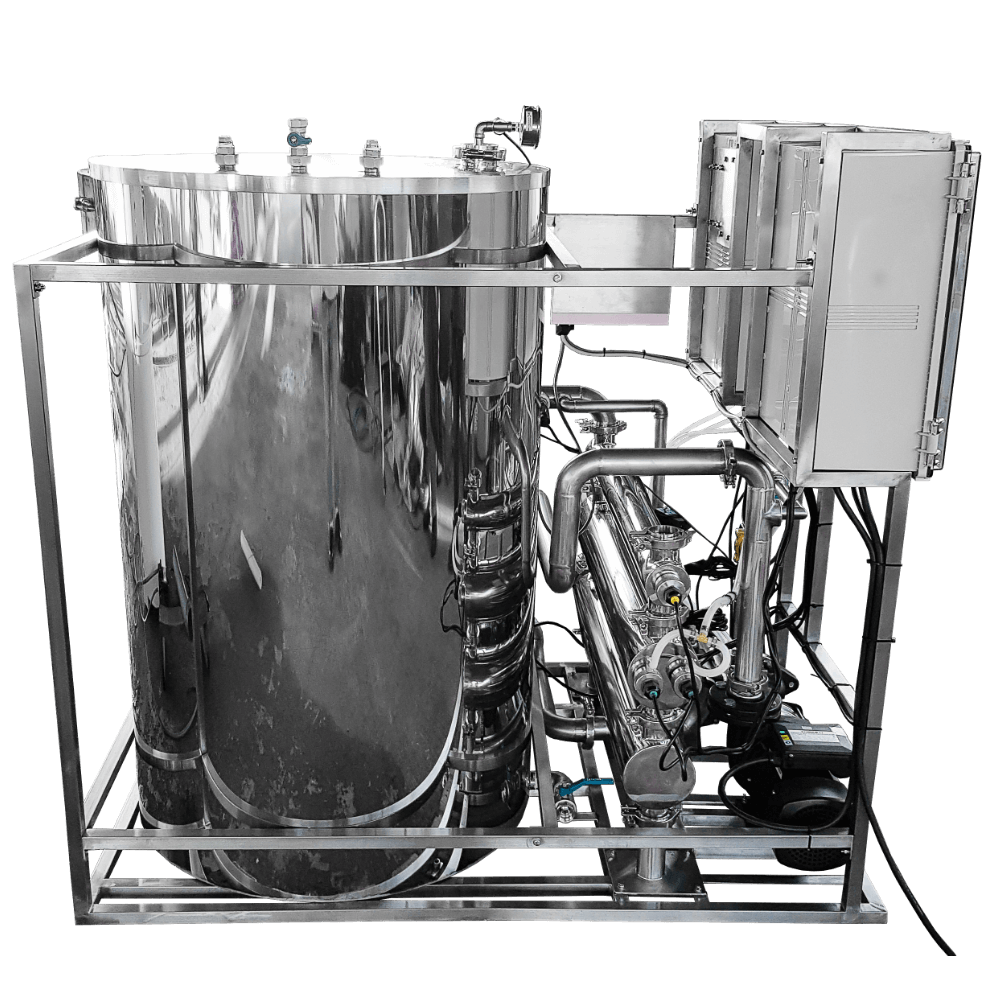

High flow pre-treatment

Water purification process:

  • Media filtration
  • Ozonation
  • UV sterilization
  • Peristaltic pumps:
    • injection of a flocculant solution
    • injection of a pH solution
    • injection of chlorine solution

Adaptable according to the quality of the incoming water

Flow: 120,000.00 liters per day

Flow rate: 5,000.00 liters per hour



Specification

Filter media tank activated

  • Stainless steel, grade 304
  • Diameter: 77.5 cm
  • Height: 122 cm
  • Thickness: 2mm

Ozone generator and UV sterilizer

  • Stainless steel case
  • An amalgam UV sterilizer
  • 105W 1200mA
  • lifespan: 13,000 hours

Three peristaltic pumps

  • injection of a flocculant solution
  • injection of a pH solution
  • injection of chlorine solution

controller and monitoring

  • A pH / ORP control unit
  • Voltmeter monitoring
  • An Internet surveillance system.

Dimension :

  •  L 101cm x P 97cm x H 93cm

Dual ozone injection mode.

  • Normal mode
  • Ozone shock mode
