Water treatment system

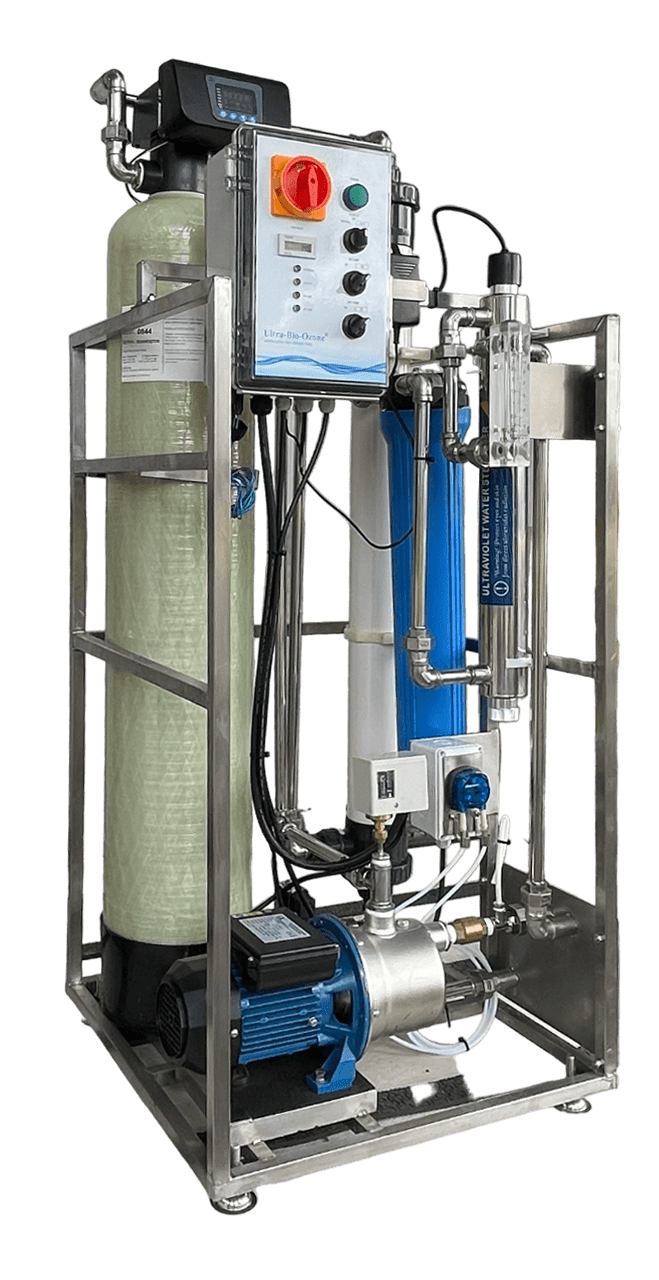

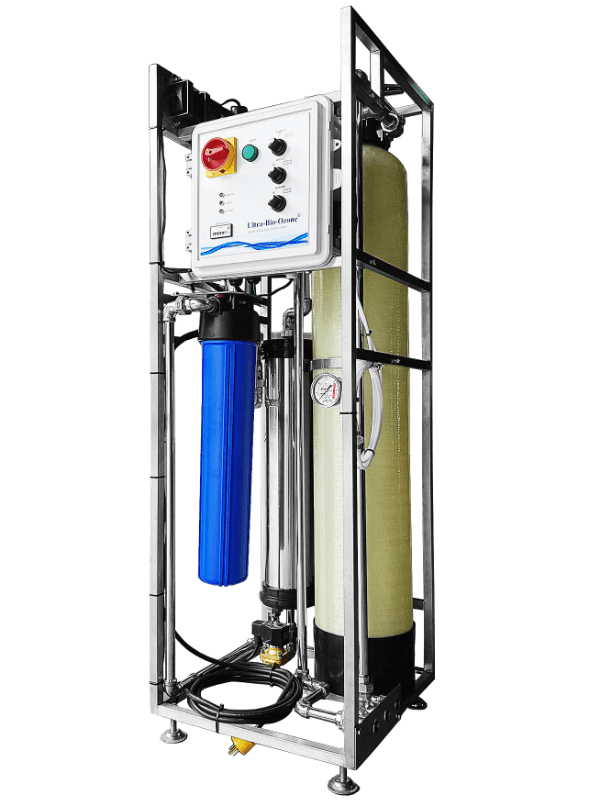

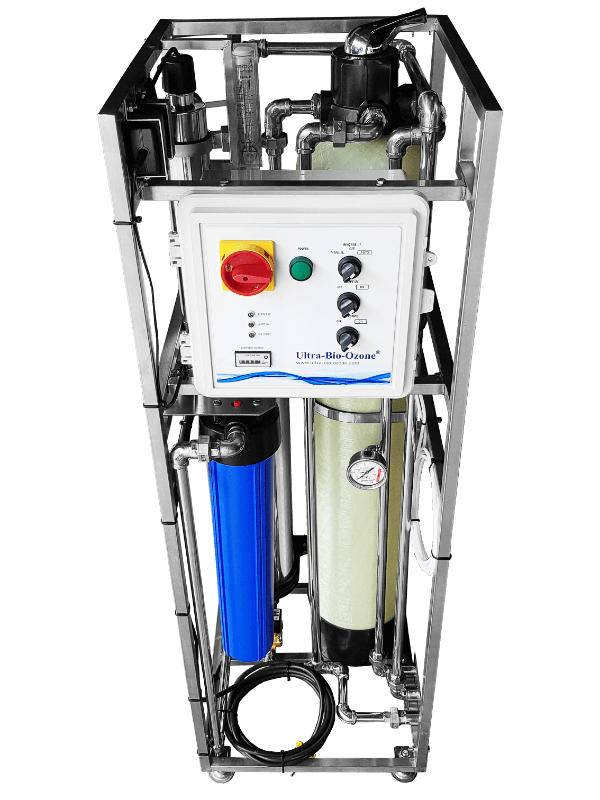

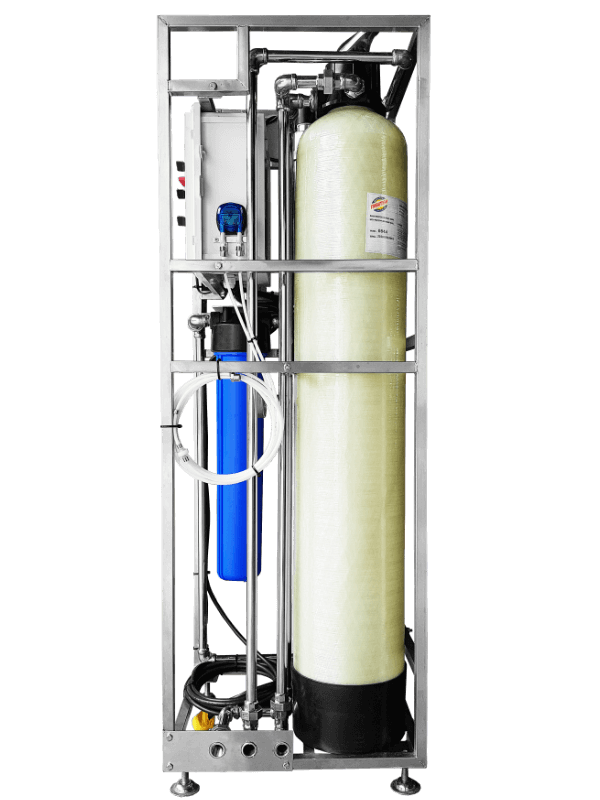

*The images shown are for illustration purposes only and may not be an exact representation of the product.

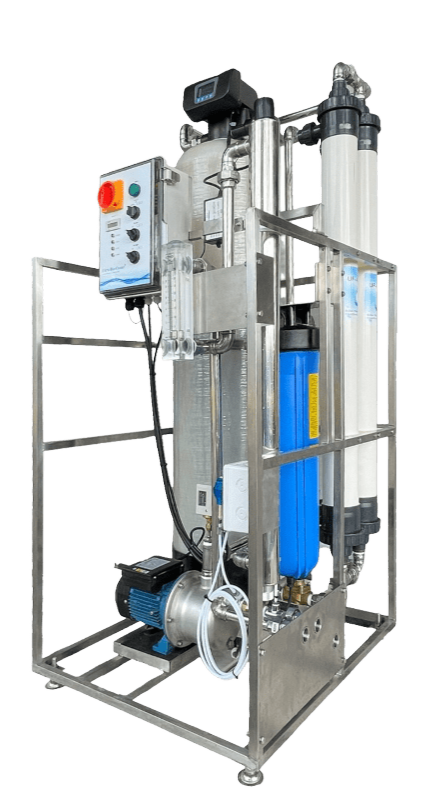

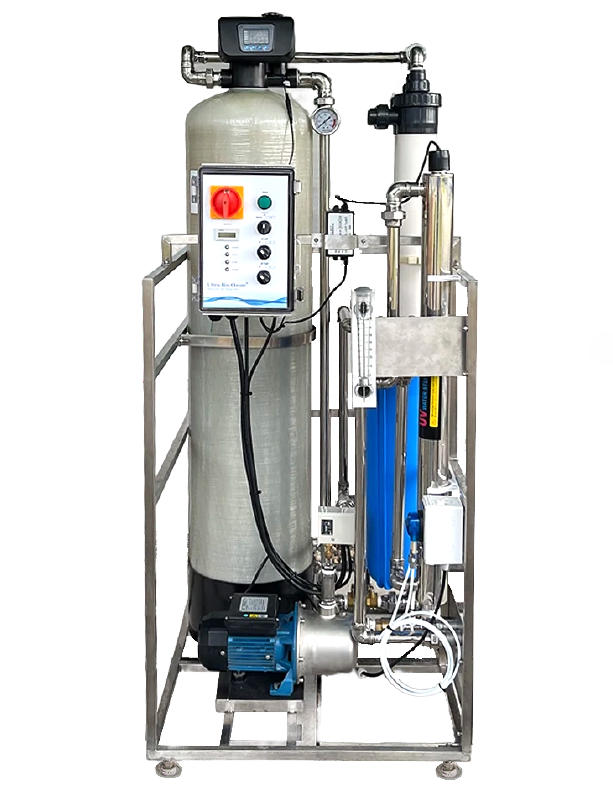

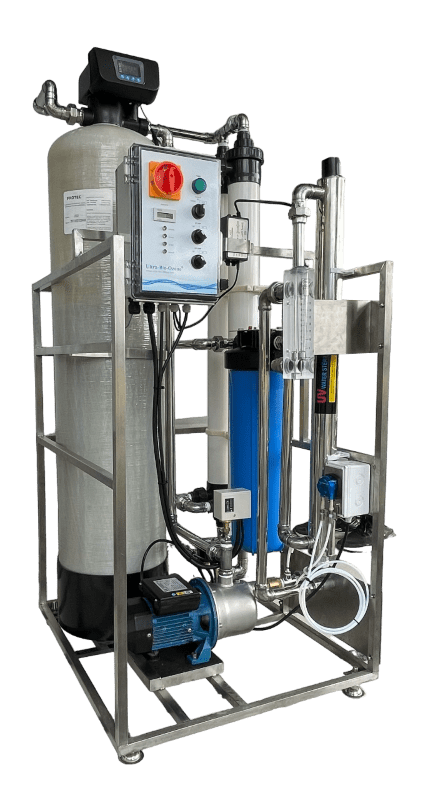

Specification:

• Weight: 58 kg
• Size: L46 x W43 x H135 cm.
• One Activated filter media tank
• An active media filter tank 8″ x 44″ (20  x 111 cm) ,with manual backwash valve.
• Total weight for media filter : 30 kgs.
• A 25 watt UV sterilizer, 220 V ca 50/60 Hz
• UF filter completed with the automatic flush valve.
• One 2.5″ x 20″ (6.35 cm x 50.8 cm) activated carbon filter.
• One water flow meter.
• One water pressure gauge.

Additional feature:

• Optional automatic backwash feature available.
• Multi-Spectrum Coagulant and Flocculant for eliminating manganese iron color, Clear up cloudy water.

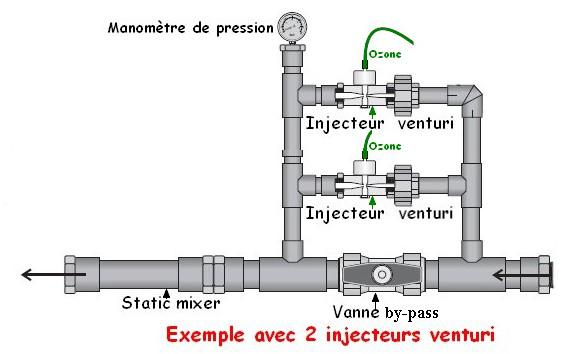

(Include dosing pump, injector, PLC for control Injection, an injection pipe. All assembly in the waterproof control box and install in the system.)

• This combination of technologies uses high quality water filters. It is 40 times more efficient than a sand filter, it can filter heavy metals such as iron, manganese, chromium, phosphate, etc…
• Incorporates a UV sterilization system to effectively kill bacteria and viruses.
• Ultrafiltration (UF) can filter down to 0.01 micron using a membrane to separate undesired materials. It filters bacteria and particles present in the water. Ultrafiltration (UF) technology is particularly popular in industrial applications.
• The activated carbon filter absorbs chemicals, odors, residual chlorine, heavy metals such as lead and copper, insecticides, detergents and high carbon products.

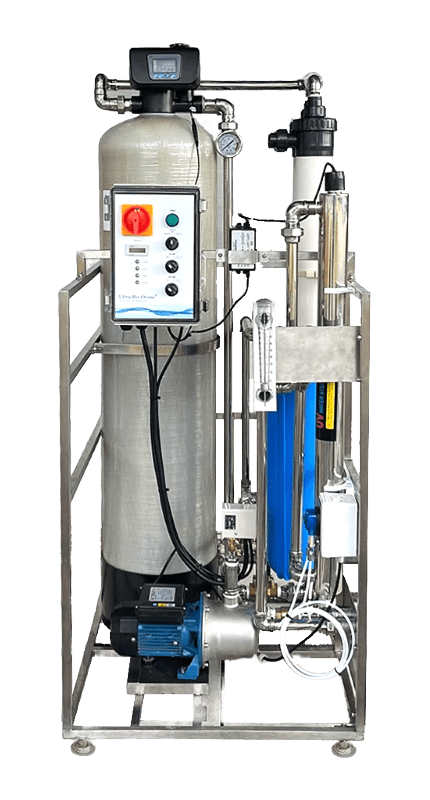

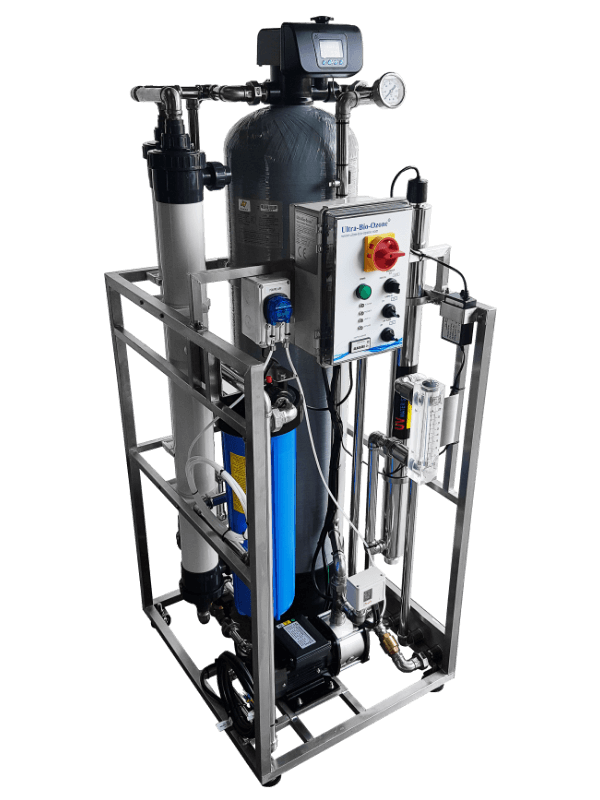

* With additional functionality

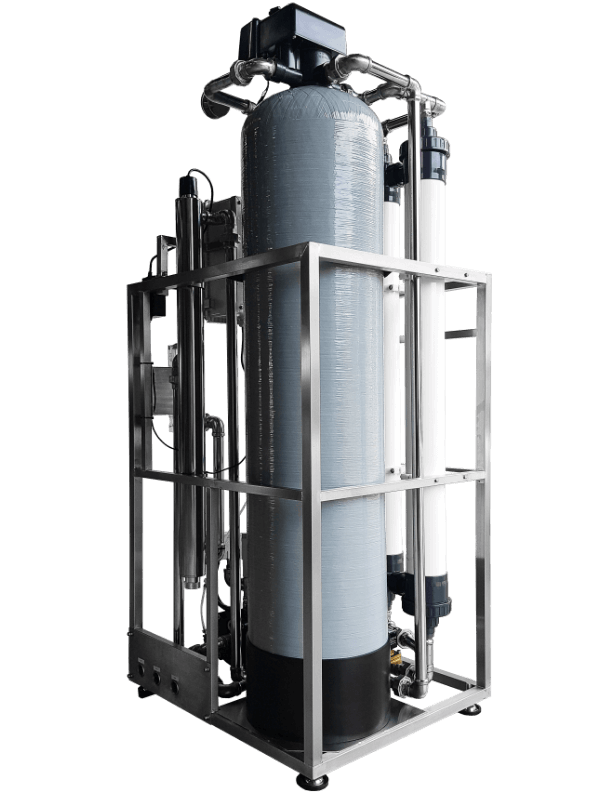

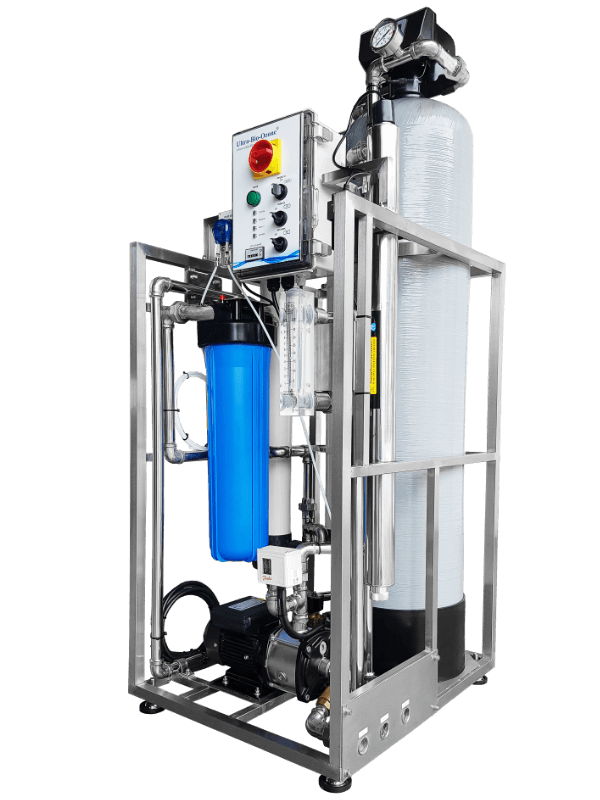

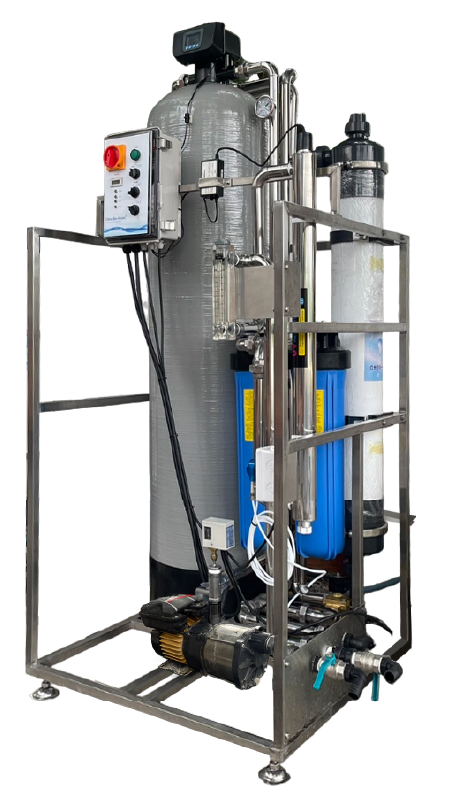

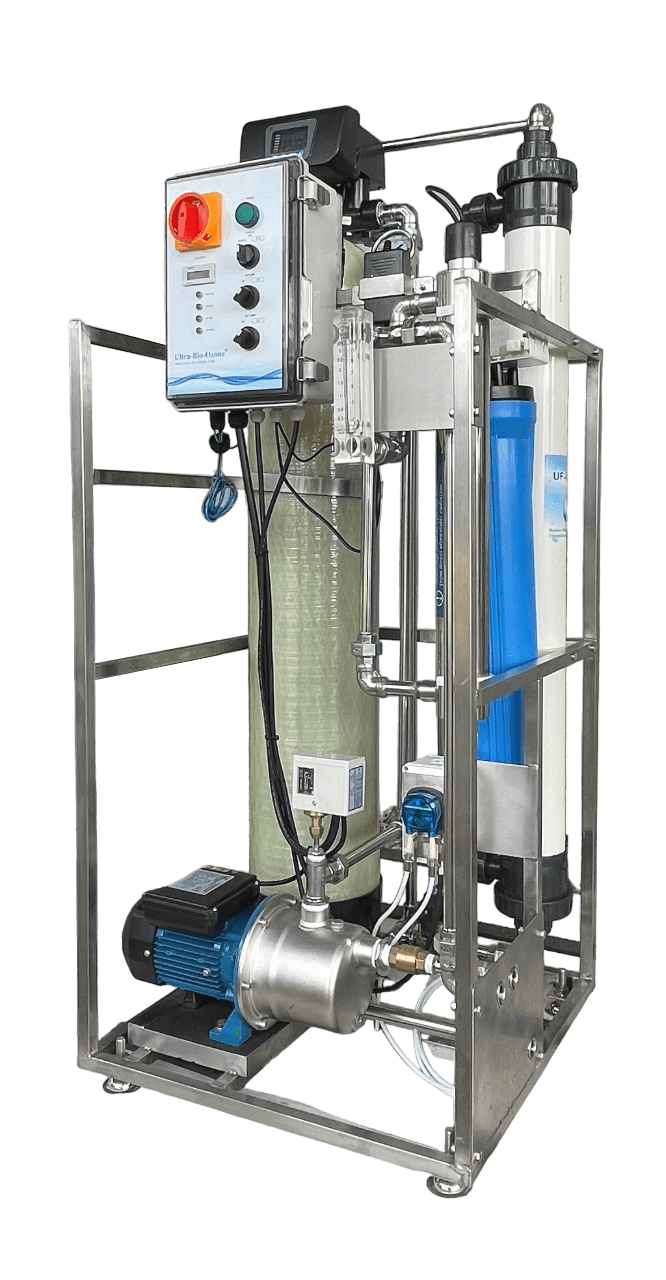

*The images shown are for illustration purposes only and may not be an exact representation of the product.

Specification:

• Weight: 102 kg
• Size: L84 x W62 x H158 cm.
• An active media filter tank.
• An active media filter tank 12″ x 52″ (30 x 132 cm) with manual backwash valve.
• Total weight for media filter : 75 kgs.
• 55 watt UV sterilizer, 220 V ac 50 / 60 Hz.
• UF filter with flush valve
• One 4.5″ x 20″ (11.43 x 50.8 cm) activated carbon filter.
• water flow meter.
• pressure gauge.

Additional feature:

• Optional automatic backwash feature available.
• Multi-Spectrum Coagulant and Flocculant for eliminating manganese iron color, Clear up cloudy water.


(Include dosing pump, injector, PLC for control Injection, an injection pipe. All assembly in the waterproof control box and install in the system.)

• This combination of technologies uses high quality water filters. It is 40 times more efficient than a sand filter, it can filter heavy metals such as iron, manganese, chromium, phosphate, etc…
• Incorporates a UV sterilization system to effectively kill bacteria and viruses.
• Ultrafiltration (UF) can filter down to 0.01 micron using a membrane to separate undesired materials. It filters bacteria and particles present in the water. Ultrafiltration (UF) technology is particularly popular in industrial applications.
• The activated carbon filter absorbs chemicals, odors, residual chlorine, heavy metals such as lead and copper, insecticides, detergents and high carbon products.

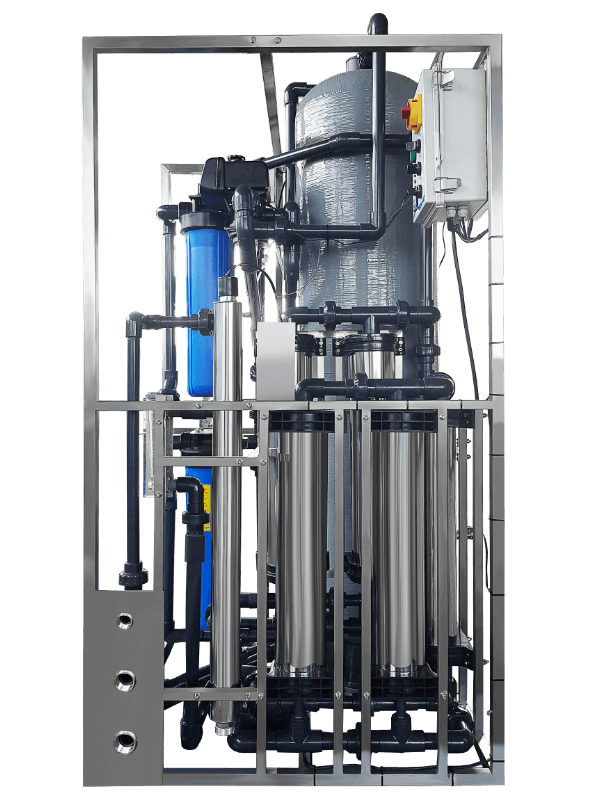

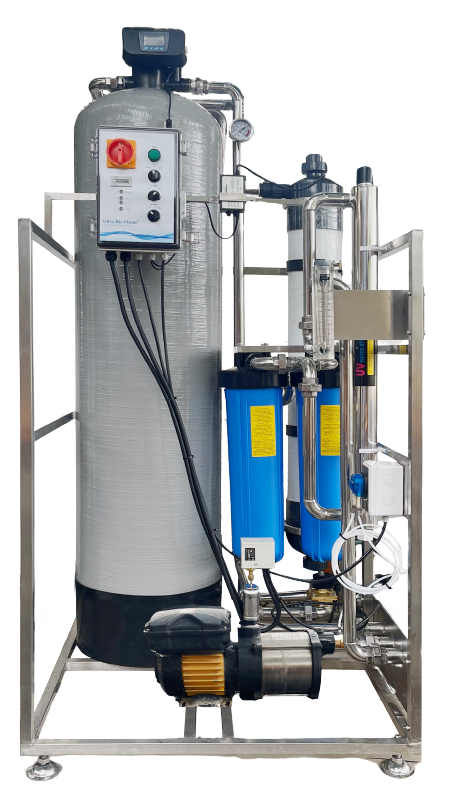

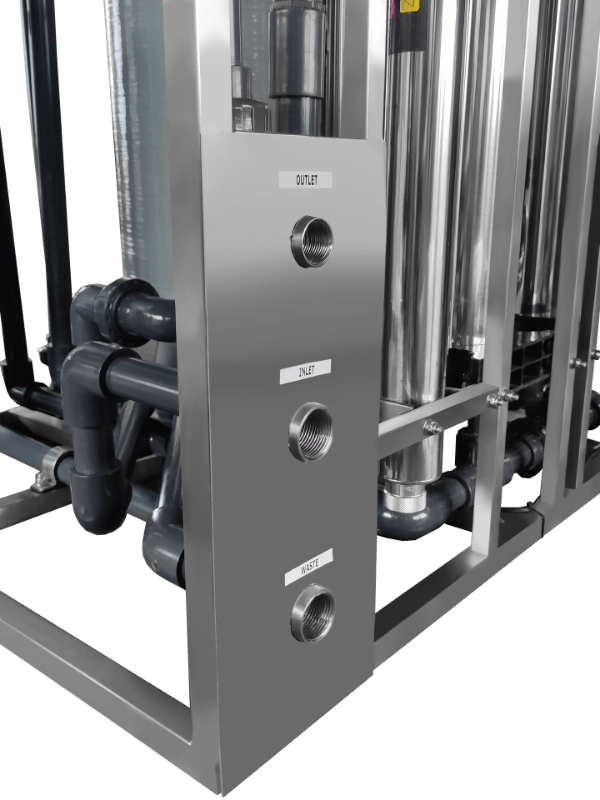

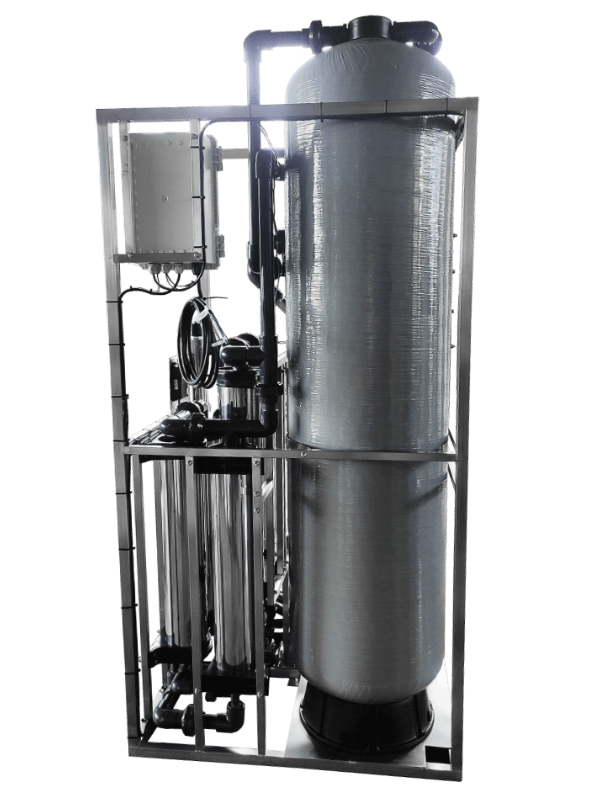

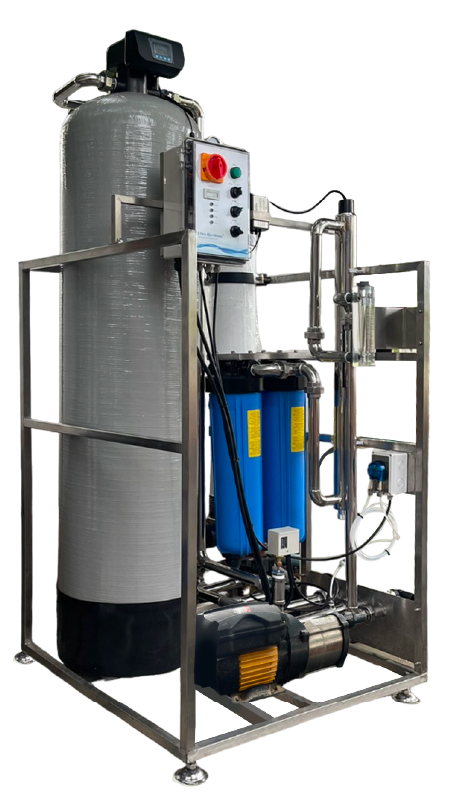

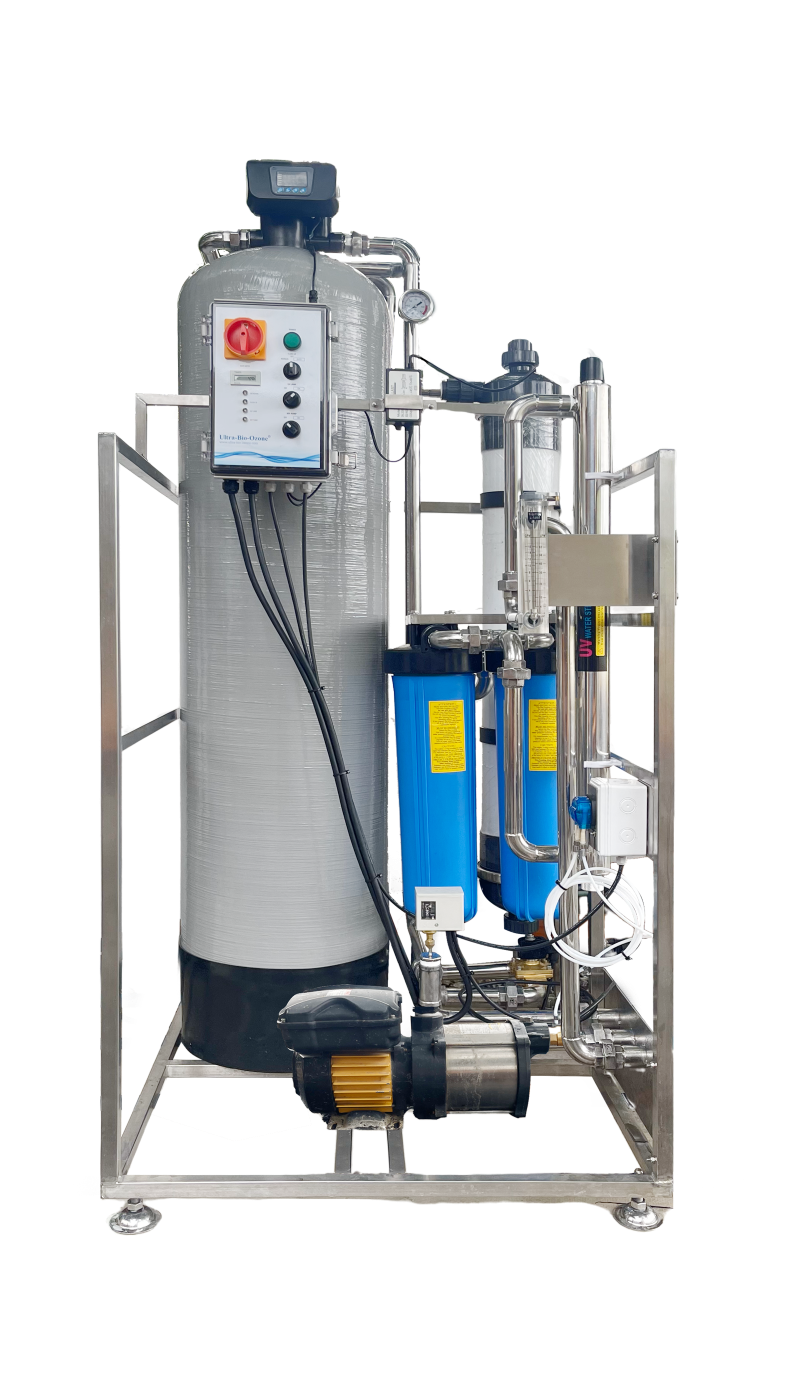

*The images shown are for illustration purposes only and may not be an exact representation of the product.

Specification:

• Weight: 310 kg
• Size: L90 x W86 x H190 cm.
• An active media filter tank.
• 16″ x 65″ (40 x 165 cm) fibreglass tank.complete with manual backwash valve.
• Total weight for media filter : 175 kgs.
• A 55 watt UV sterilizer, 220 V ca 50 / 60 Hz.
• UF filters supplemented by the automatic flushing valve.
• Two 4.5″  x 20″ (11.43 x 50.8 cm) activated carbon filters
• A water flow meter.
• A pressure gauge.

Additional feature:

• Optional automatic backwash feature available.
• Multi-Spectrum Coagulant and Flocculant for eliminating manganese iron color, Clear up cloudy water.

(Include dosing pump, injector, PLC for control Injection, an injection pipe. All assembly in the waterproof control box and install in the system.)

• This combination of technologies uses high quality water filters. It is 40 times more efficient than a sand filter, it can filter heavy metals such as iron, manganese, chromium, phosphate, etc…
• Incorporates a UV sterilization system to effectively kill bacteria and viruses.
• Ultrafiltration (UF) can filter down to 0.01 micron using a membrane to separate undesired materials. It filters bacteria and particles present in the water. Ultrafiltration (UF) technology is particularly popular in industrial applications.
• The activated carbon filter absorbs chemicals, odors, residual chlorine, heavy metals such as lead and copper, insecticides, detergents and high carbon products.
